60-66mm High Flow Stainless Steel Wastegate Merge For 3" Straight Tube | Motion Raceworks

Motion Raceworks

Regular price €136,95

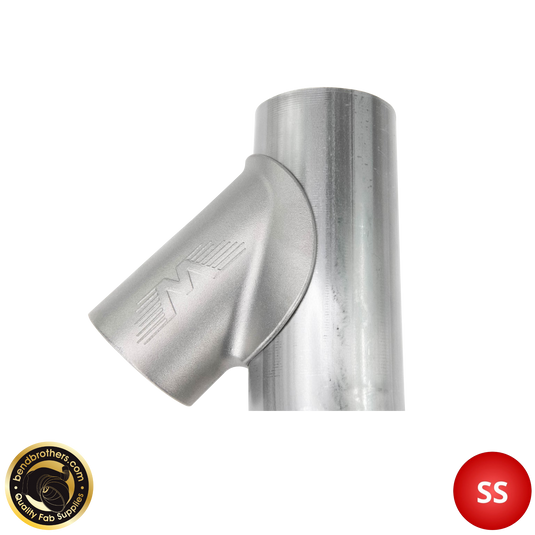

60-66mm High Flow Cast Stainless Wastegate Merge To Fit 3" OD Straight Tube


Motion Raceworks is committed to improving the performance and quality of builds. Every year we see dozens of instances of lost races or frustrated racers who have had wastegates merges crack off at the weld joint.

Wastegates are heavy especially depending on size and piping design. Inherently in fabricating a merge you are shaping metal, grinding, deburring and then welding a corner joint on only one side. This creates a weak point prone to cracking and/or breaking especially with extreme heat cycles.

Motion's new High Flow Wastegate merge combats all of these common issues with a cast "doubler" or high strength merge. Its unique saddle design is intended to be strong and versatile allowing you to position the merge anywhere on the outside of straight 3" tubing.  From there you can mark out the inner dimension, cut, and weld the flange on.


Product: 60-66mm High Flow Stainless Steel Wastegate Merge For 3" Straight Tube

Material: Cast from weldable 316 stainless steel ( compatible with 304SS )

Benefits: Saddle design extends past weld joint to allow for a strong and robust lap joint & Merge/Opening internally is over double the size of a typical internal pipe joint for higher priority flow to the wastegate.

What you get: 1x wastegate marge packed and delivered to your door.

Product Code: 21-1301
